Basic Info.
Model NO.
YUOU-Dock seal
Material
Frame Material:Aluminum Alloy
Type
Air Tight
Open Style
Swing
Opening Type
Power Driven
Special Function
Security
Color
Black
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Application
Warehouse, Cold Storage ,Loading Bay
Fixed
Galvanized Steel Liner
Cord Fabric
Wear-Resistant Fabric
Profile Color
Aluminum (Ral9006)
Transport Package
Export Wooden Case
Specification
3000*2500(Customized)
Trademark
YUOU
Origin
China
HS Code
85308000
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
350.00cm * 500.00cm * 500.00cm
Package Gross Weight
300.000kg
Product Description
Description:
Dock shelter is widely used in dock area.It seals the gap between truck and warehouse.Provide a a clean and airtight loading environment.
Three kind of dock shelters are commonly used:
1.Mechanical dock shelter:
Technical data:
Structure Diagram:
Product Details:
1.Front curtain:
Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2
2. Side curtain:
3. Aluminum frame:
4. Accessories:
You will receive:
Products real shot:
Dock shelter is widely used in dock area.It seals the gap between truck and warehouse.Provide a a clean and airtight loading environment.
Three kind of dock shelters are commonly used:
1.Mechanical dock shelter:
Technical data:
| Mechanical Dock Shelter | |||
| Size | 3400*3400mm or customized | ||
| Color | Stanard color is black, or customized | ||
| Front Material | Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2 | ||
| Adjustable height rang | 1000mm | ||
| Side PVC Material | Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m2 | ||
| working temperature | 35ºC to 70ºC | ||
| Aluminum frame | The rear profile size is 50*44mm, the front profile size is 45*44mm, the frame size is 50*25*2.5mm, and the front press plate size is 34*4.8mm | ||

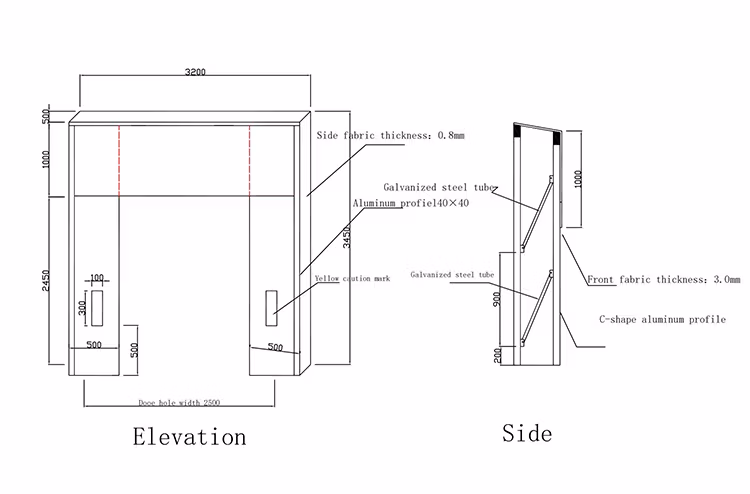

Structure Diagram:
Product Details:
1.Front curtain:
Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2
2. Side curtain:
Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m2
3. Aluminum frame:
The rear profile size is 50*44mm, the front profile size is 45*44mm, the frame size is 50*25*2.5mm, and the front press plate size is 34*4.8mm
4. Accessories:
Products real shot:
